COTTON AND FIBER BLOWING CARD

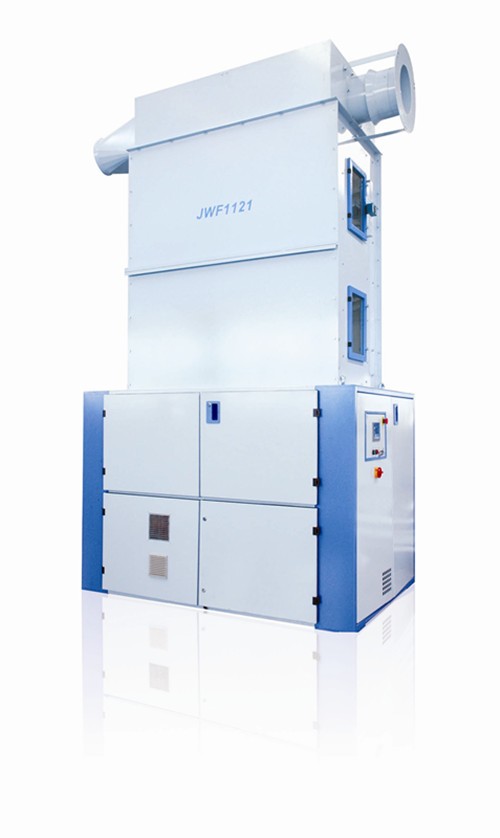

JWF1121 FINE OPENER

This machine is commonly erected between mixer and chute feeder in blowroom. It is suitable for further opening and de-dusting of various kinds of raw cotton, cotton type chemical fiber, long and medium fiber below 76mm for next process.

Main Feature

• It is mounted with photocell switch at the side of chute feeder for controlling feed amount from previous machine to ensure material height inside upper chute feeder.

• De-dusting mechanism adopts carding segments and mote knifes with good dust excluding efficiency.

• Upper feed roller and gill beater are made by Al-alloy, featured with light weight and beautiful appearance.

• Feed roller speed is controlled by inverter.

• Continuous feed adopts PID and analogue calculation for option.

• Advanced pre-fill function ensure pressure stable before system start.


1 Inlet of fiber

2 Impurity outlet

3 Dust outlet

4 Outlet of fiber

5 Top chute

6 Top feed roller

7 Bottom feed roller

8 Gillbeater

9 Carding segment

Specifications
