COTTON AND FIBER BLOWING CARD

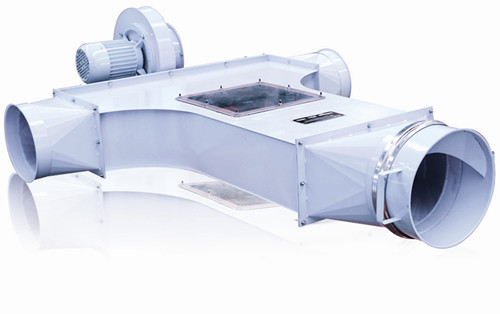

FT202A T-SHAPE DISTRIBUTOR
FT202A is used in two-way cotton distributing system between cotton transportation fan and chute feeder, whose function is to even distributing cotton from transportation fan to two cotton transportation ducts.
MAIN FEATURES
☆ Cotton feeding quantity to two ducts can be efficiently balanced by use of air volume and air pressure of little fan,so as to supply cotton according to different requirement in each duct.
☆ It is equipped with blowing fan and guiding ring on machine, which can flexibly adjust two way cotton transportation quantity.
SPECIFICATIONS
|
Working diameter(mm) |
Entrance |
Φ300 |
|
Exit |
Φ250 |
|
|
Fan air pressure (Pa) |
2000 |
|
|
Fan air volume (m3/h) |
600 |
|
|
Maximum fan speed (r/min) |
2700 |
|
|
Fan power rate (kw) |
0.55 |
|
|
Overall dimension (L*W*H)(mm) |
1776 x 1300 x 536 |
|
