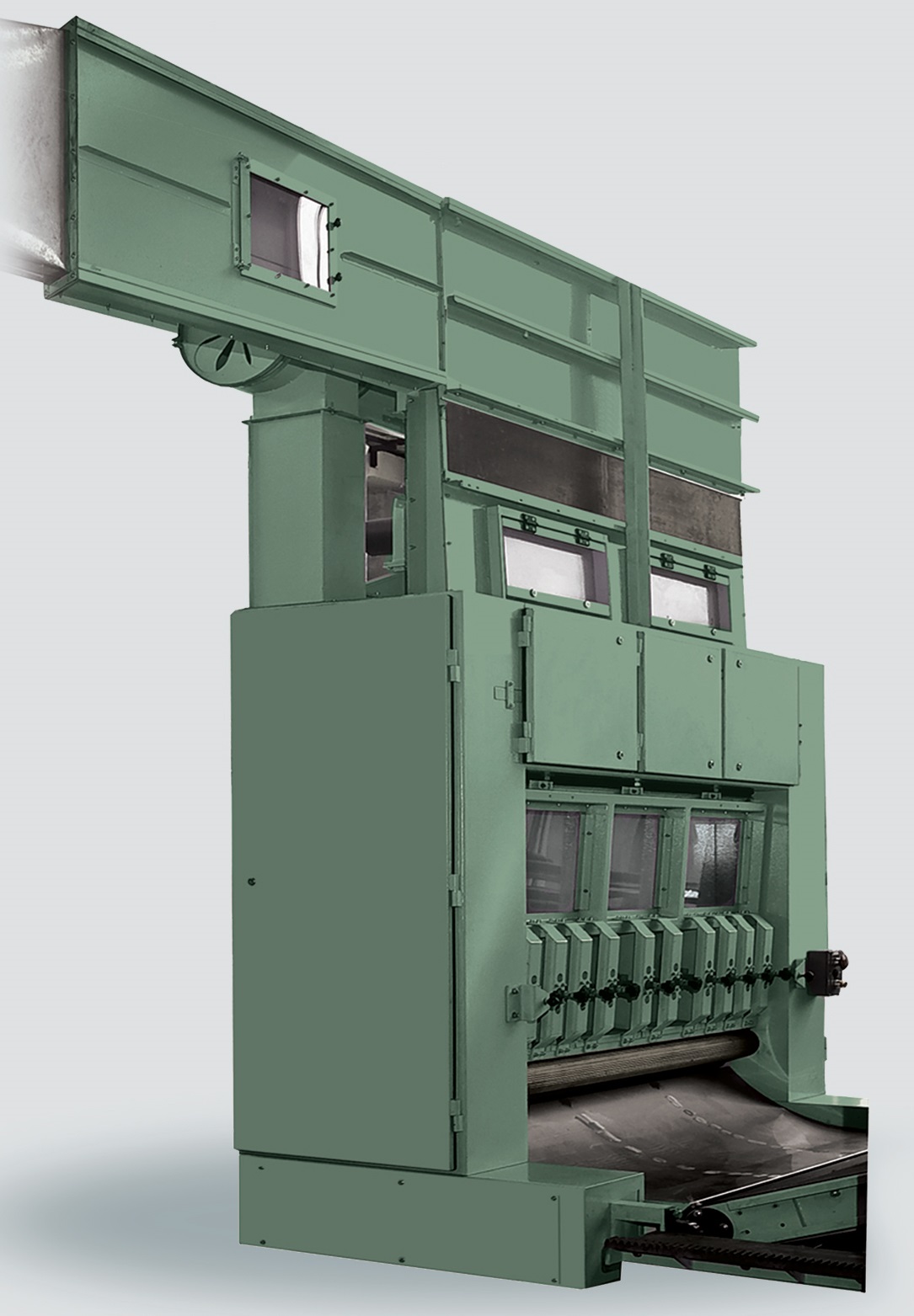

BG221E PNEL JMATIC VIBRATING FEEDER

Main Specification

Output: 120kg/h in per meter width.

Working width: 1500 ~ 2500 mm

Application: 1.5-20D、25-75mm

Installed Power:8.4kw

Main Performance

This machine is designed as the feeding device of the nonwoven card. Fibers after blowed by previous process will be fed onto the reserve silo on the top of the machine by fan.

Then fibers in the reserve silo will form a certain density and be opened by lower opening rollers.

Under the interaction of even pressure and vibrating board, fibers then will be fed into lower chute and form homogeneous slivers,which will be fed into card through conveying belt or auto-leveler by a pair of output rollers.

Main Structure Features

Interaction of compressed air system and vibrating board to guarantee stable and even layer output

Powerful internal fan driven by inverter to guarantee a horizontal evenness of output layers

Adjustable thickness of lower chute ranging from 50 to 125mm according to productivity.

Profile adjustment device of output slivers to guarantee horizontal evenness

Production Patents and Industry Standards Maker.

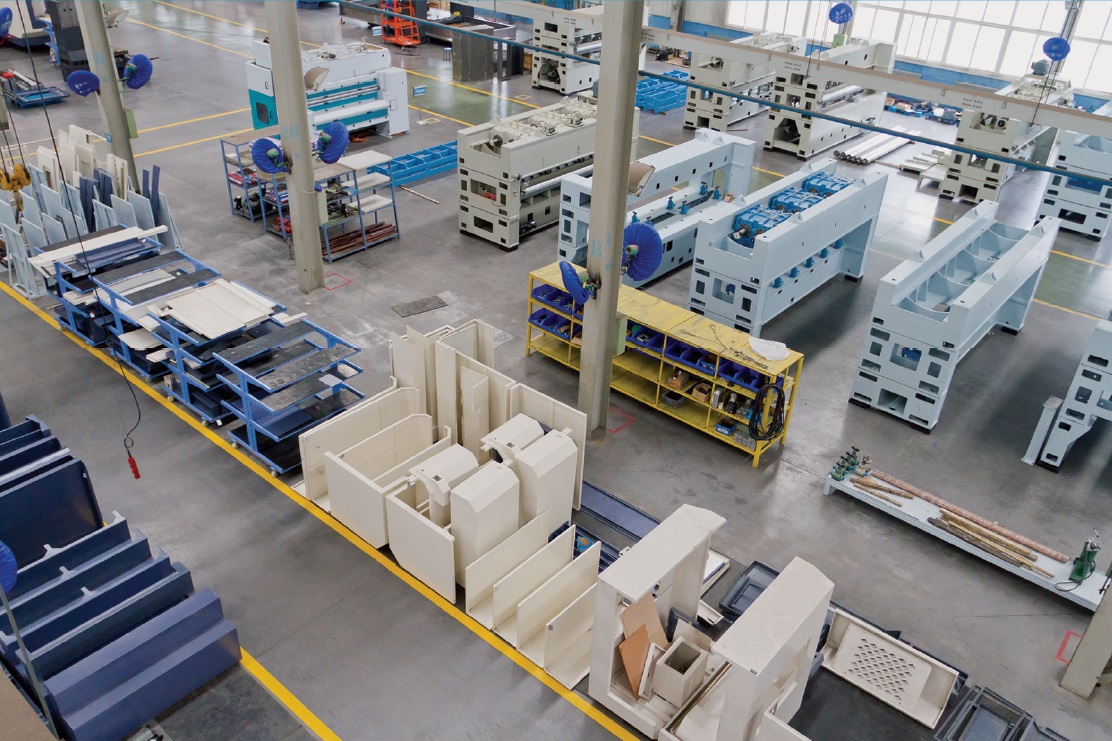

7S Site Management

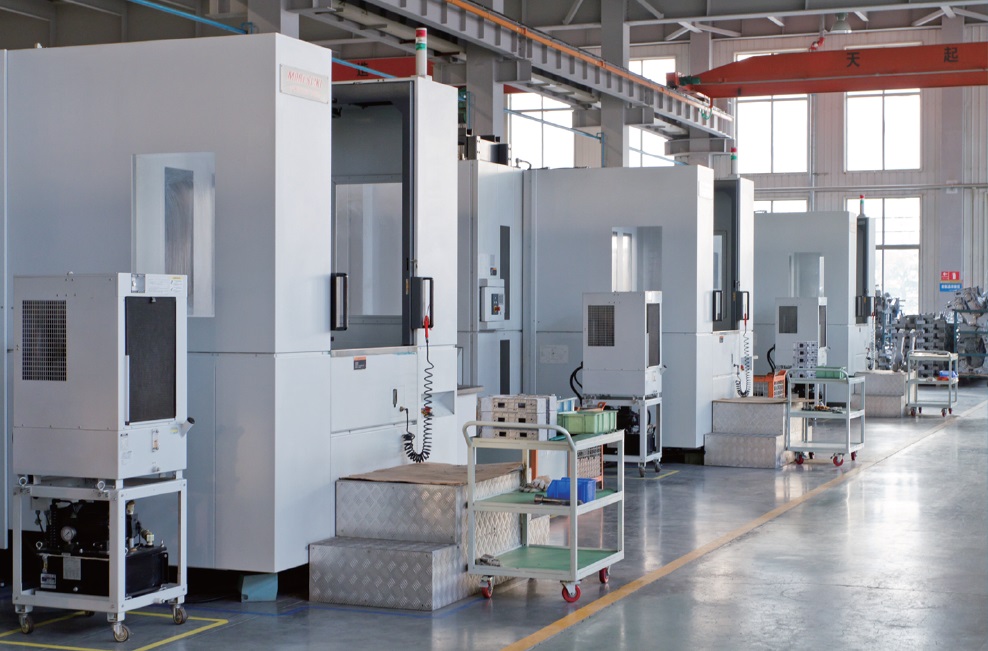

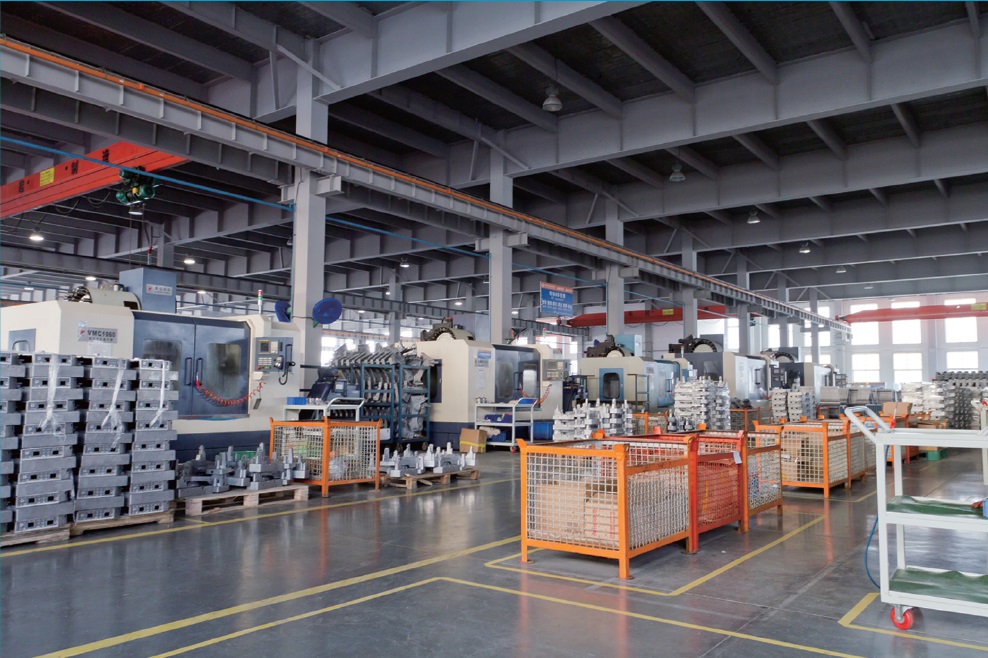

Superior Manufacturing Equipment
