JWF1115 SERIES FINE OPENER
JWF1115 SERIES FINE OPENER
This machine is one of scutching and blowing machinery whose function is for further opening and cleaning to cotton or chemical fiber being primary opened
Main Feature
This machine is made up of top chute,feed unit,beater,unit,grid bar adjusting unit,frame unit.It is used together with fiber separator in scutching process and its gill beater,running at certain speed,exclude trash through mutual function of centrifugal force and grid bar.Fully opened and cleaned material are sent to next process and trash separated are sent to dust filtering system.
1.Top chuter
2.Top feed roller
3.Bottom feed roller
4.Gillbeater
5.Grid bar
Specifications
|
Item Out put(Kg/h) Suitable material Working width(mm) Feed roller speed(r/min) Gill beater speed(r/min) Power installed(KW) Profile dimension(mm) |
JWF1115 600 Natural and man made fiber in length less than 76mm 1060 18~85, stepless speed adjusting according to output 516、582、647，pulley diameter changeable according to output 3.55 1560×1520×2870 |

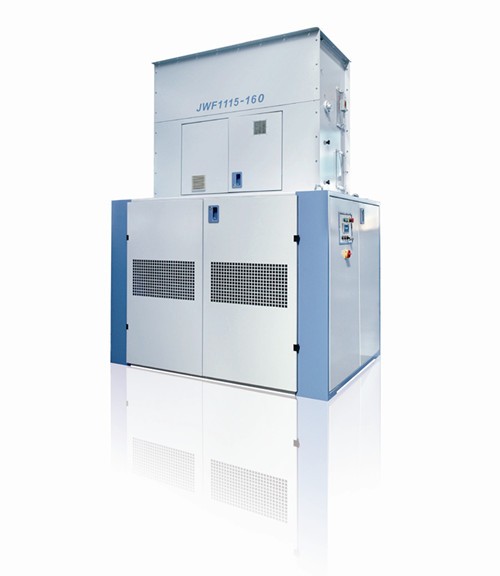

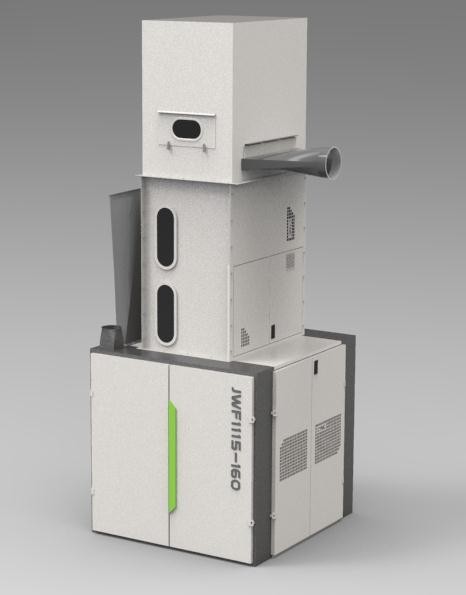

JWF1115-160 800 1600 5.1 2100×1520×2870 |
