COTTON AND FIBER BLOWING CARD

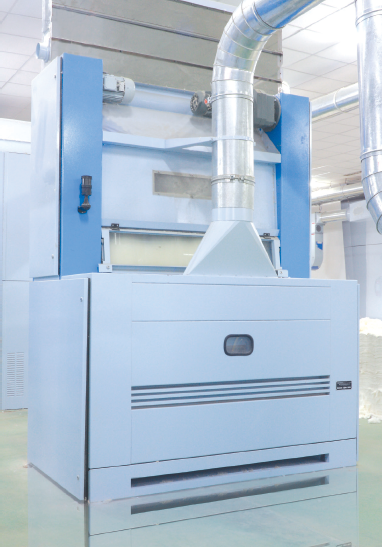

FA116 Series Master Cleaner

There are two kinds of widths to choose from, the machine organic combination of the working principle of the combing and feeding cotton box and the carding and separating principle of the carding machine. Suitable for processing all grades of raw cotton or combed short fiber. FA116 series Master Cleaner feeding cotton box, feeding cotton roller, transfer roller, separating roller, etc., the combing area is equipped with 3 dust removing knives, two separating combing plates, transfer zone with cotton net cleaner, realized "light feeding", "ease carding", "reasonable transfer",and to achieve "carding-impurity removal, carding-impurity removal, carding. Removing impurities repeatedly alternates with free carding. When the fibers are processed by the Master Cleaner they are basically clean and fully loosened. According to the situation of raw materials, the efficiency of main impurity removal machine can reach 30-50% by adopting proper process express delivery and process distance.

The up feeding roller, the bottom feeding roller, the transfer roller and the large carding roller coil respectively the imported card clothing of the patented technology, which ensures the softness and gradual loosening of the fiber.

It adopts well-known brand PLC and man-machine interface. The main taker motor, the lower cotton feeding motor and the upper cotton feeding motor all adopt inverter speed controlle system. The technology is flexible and the adjustment is convenient.

Four pressure sensor are the key equipment to realize continuous cotton feeding system. The situation of the machine depends on these four pressure sensor. The monitoring system can regulate the pressure sensor to ensure the machine keen on in high efficiency.

As the core of continuous cotton feeding system of carding and blowing line, the machine is equipped with multiple protective functions, such as: main taker roll stall detection to prevent damage to main taker roll clothing; upper feeding load protection, when the cotton layer is too thick or the machine is in bad condition, automatic stop protection; lower feeding cotton has foreign body, metal protection, when foreign body or metal enters the clothing. It can automatically detect and reverse automatically.
